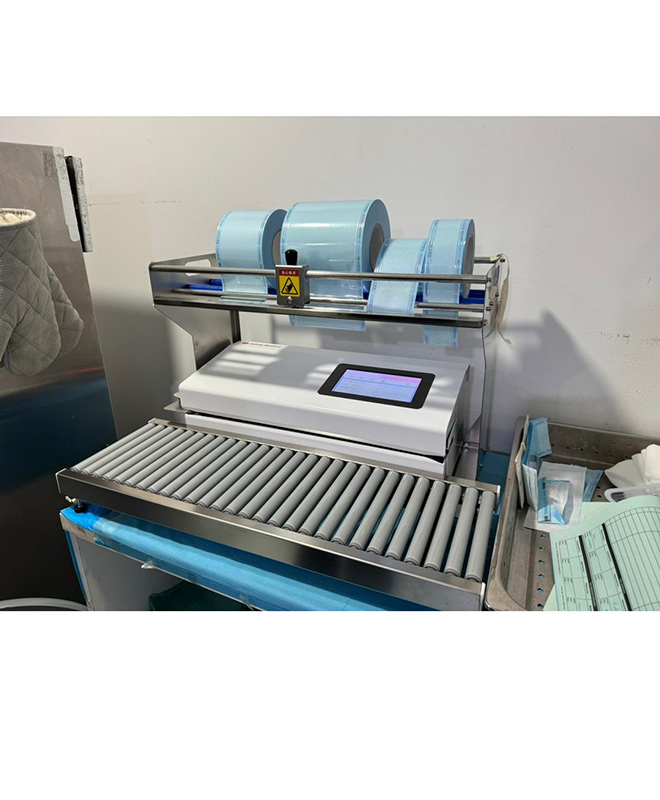

Medical Pouch Sealer

Rotary Heat Sealer with Built-in Printer

Contact Us
Download PDF
Set A Consultation Today
Name can't be empty
Email error!
Message can't be empty
Send

*We respect your confidentiality and all information are protected.

General Details

Specification

Related Products

Reviews

Description

Built-in printer is used to print manufacture date, expiry date, operator, departement, lot number etc. information on the paper side, which may be essential in some countries or areas. With this you do not need to waste time writing that content down after or before sealing the pouches.

Features

  • Automatic rapid continuous heat sealing technology to improve packaging efficiency;
  • Built-in dot matrix printer prints manufacturing date, expiry date, operator and other information on the pouch during sealing;
  • Intuitive touch panel displays status of the sealer and facilitate operation;
  • Sealing temperature, printed content and other sealer configurations can be set by touch panel;
  • Precise temperature control makes your sealing meet related regulations. The temperature is adjustable from room temperature to 220°C, and the working temperature is accurately controlled to ±1°C;
  • Overheating protection invoked when the upper temperature limit is exceeded;
  • Standby functionality prolongs sealer service life and reduces energy consumption. Standby time and temperature are adjustable;
  • Seal width 12mm; sealing strength meets the regulations of prEN 868-5:2007;
  • High-temperature ceramic plus plate, heats up quickly, evenly, is high-temperature resistant, and has a long service life;
  • Cartridge popup from side eases replacement.
  • USB data export
Items Description
Model HCRseal-30
Size 535×232×188 mm
Weight 14kg
Rated power 400VA
Shell Powder coated carbon steel
Sealing temp. Ambient temp. – 220°C
Heating speed Heat to 180℃ within 40s (Only for 220V power supply)
Sealed seam width 12mm
Sealing speed ≥10mm/min
Distance from edge 0–40mm
Display and control 7-inch touch panel
Built-in printer Single line dot-matrix printing (can be disabled)
