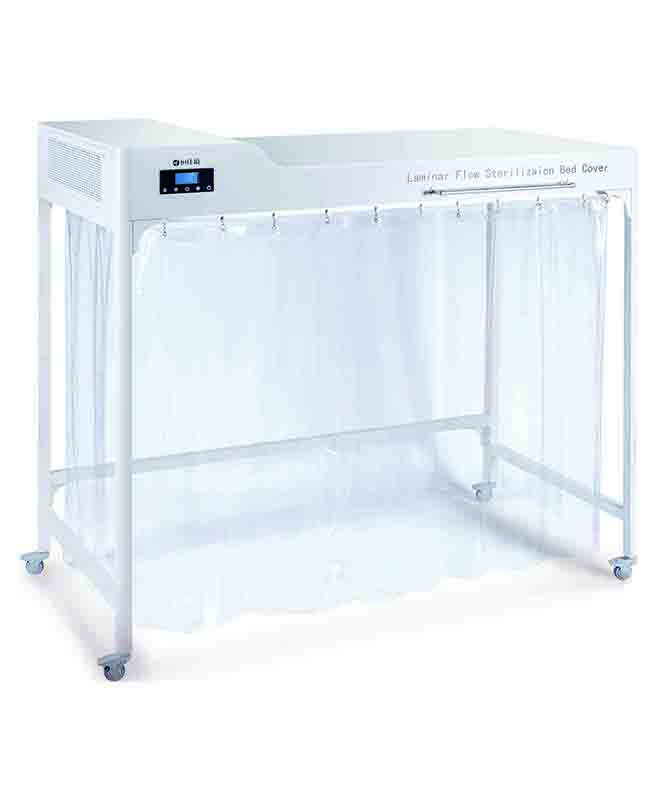

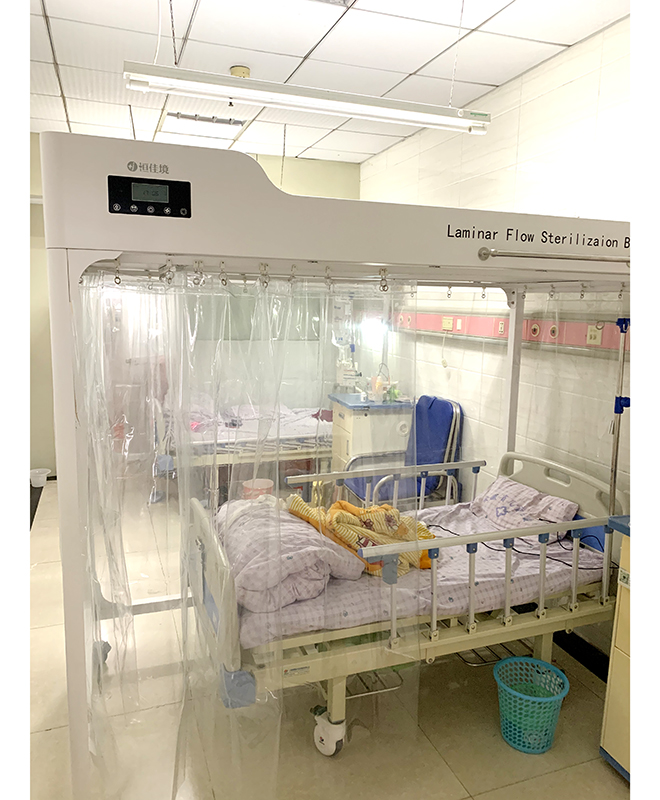

Positive Pressure Isolation Canopy

Performance

• UV radiation leakage: less than 1 μW/cm²; ozone leakage: less than 0.003 mg/m³; both are within acceptable / standard limits.
• Internal UV radiation intensity: ≥27000 μW/cm²
• After the device has been operating continuously for 1 hour, the concentration of airborne particles ≥0.5 μm in a 100 m³ room is ≤300,000 particles/m³, achieving a Class 10,000 (10,000-level) air cleanliness level.
• After the equipment has been operating for 10 minutes, the average airborne particle concentration at each sampling point inside the disinfected canopy is: <1 particle/L@0.5 μm, 0 particle/L@5 μm.
• After the device had been operating for 3 minutes, the average airborne particle concentration at each sampling point inside the disinfected canopy was measured as follows: 766 particles/m³@ 0.5 μm; 0 particles/m³@5μm.
• After the device had been operating for 10 minutes, the airborne viable microbial count (floating bacteria) inside the disinfected canopy was measured as 1 cfu/m³.
• After the device had been operating for 3 minutes, samples were taken, and the settled bacterial count (by sedimentation method) inside the disinfected canopy was 0 cfu/30 min (Φ90 culture dish).

Features

• This device can operate safely in the presence of people and poses no harm to the human body.
• The housing is made of high-quality galvanized steel with a powder-coated surface for anti-aging and anti-combustible properties.
• It features vertical laminar airflow, delivering Class 100 (100-level / ISO 5) cleanliness inside the canopy.
• Equipped with primary, medium, and H13 fiberglass HEPA filters, along with a built-in UV sterilization lamp, ensuring a Class 100 (ISO 5) clean environment.
• An UV lamp is used to disinfect the items inside the enclosed space.
• Medical-grade, colorless, odorless, highly transparent, anti-static flexible curtain is used for optimal visibility and safety.
• A remote control with magnet can be attached to the housing surface.
• The device features a 5-inch high-resolution color display, providing clear information and a one-touch lock function to prevent accidental operation.
• Multiple operation modes are available, including manual, timer, scheduled, automatic, sleep, and turbo modes, meeting various user needs.
• The scheduled mode supports up to 9 programmable on/off time periods.
• Automatically records cumulative working time, monitors filter lifespan, and provides reminders for cleaning and maintenance.
• An integrated air quality sensor monitors real-time conditions including temperature, humidity, air cleanliness, TVOC concentration, and CO₂ levels. The air cleanliness level is displayed directly in ISO classification.
• An air quality indicator light changes in real time according to air quality, alerting medical staff to environmental conditions.
• An independent mechanical control system is included as a backup, allowing manual operation in case of main control system failure.
• Power outlets are available inside the canopy, including AC power, USB, and Type-C ports.
