Multi-technology Air Disinfection and Purification and Complementary Positive Pressure Canopy

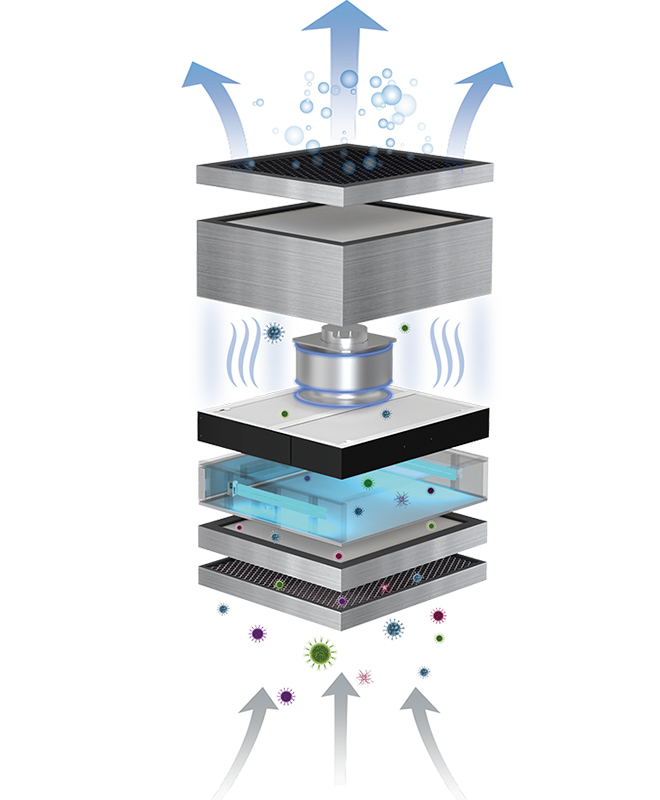

This series of air disinfection and purification machines integrate plasma, ultraviolet, photocatalysis oxidation (PCO), ULPA, molecular purification and other air disinfection techniques that can coexist with humans. The machine can disinfect and remove bacterial particles as small as 0.01μm, and the single-time bacterial disinfecting rate can reach 100%. Outlet air cleanliness maintains at class 100. This series of products can effectively achieve the disinfection levels of Class I and Class Il environment in hospitals, and is especially suitable for places with high level air disinfection and purification requirement, such as operating rooms, ICUs, endoscopy centers, hematology wards, and burn wards.

Download PDF

Products

Set A Consultation Today

Name can't be empty

Email error!

Message can't be empty

Send

*We respect your confidentiality and all information are protected.

General Details

Specification

Reviews

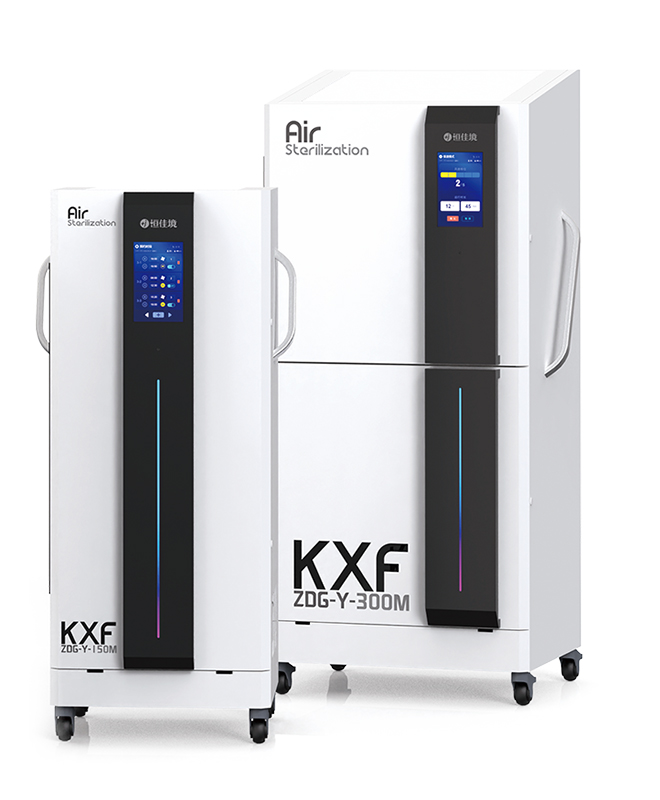

Air Purifier Features

Equipped with a 10-inch color touchscreen, offering clear display and user-friendly operation.
One six-in-one air sensor (temperature, humidity, PM2.5, CO₂, TVOC, and HCHO) that monitors air quality indicators in real time and displays the current air cleanliness level.
IoT connectivity is available, supporting multiple communication methods including RS-485, Wi-Fi, and 4G for remote control.
The system provides usage statistics for each module, allowing users to intuitively view operating time and facilitating timely maintenance or replacement.
Five wind speed levels are available.
Auto-adaptive mode adjusts the fan speed and running time automatically based on the room size input by the user.

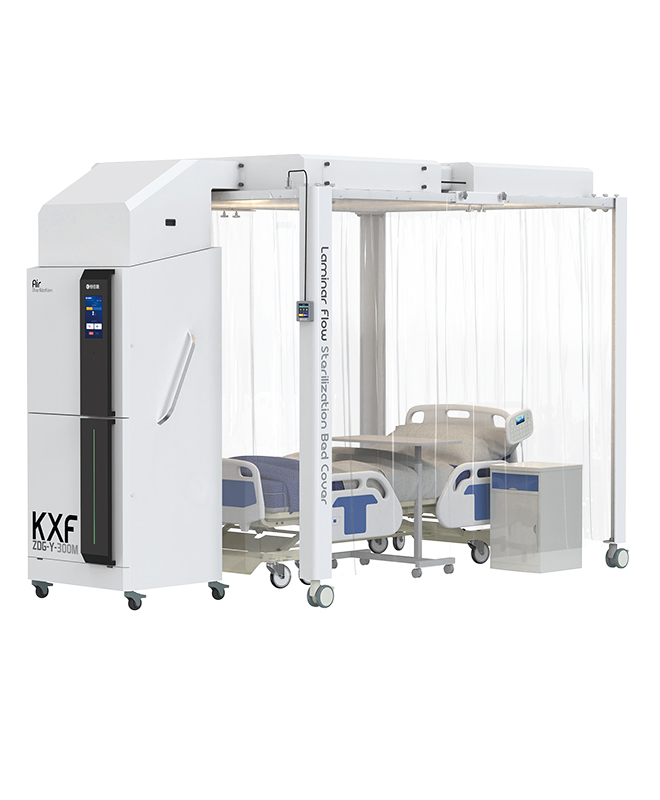

Features of Isolation Canopy

Zero Wind Sensation. The top is equipped with an extra-large air supply surface, providing extensive airflow coverage inside the canopy and creating a vertical laminar airflow. Occupants experience no wind sensation inside the canopy.
Low Noise. The disinfection unit and the isolation canopy are designed as separate modules, connected via an air duct. This significantly reduces noise levels inside the canopy, ensuring a quiet environment and creating a comfortable resting space for occupants.
Spacious Interior. The canopy features a large internal space, allowing for the placement of items such as hospital beds, bedside tables, monitoring equipment, infusion stands, and TV . Occupants will not feel confined or cramped.
Mild Positive Pressure. A mild positive pressure environment is maintained inside the canopy, effectively preventing the ingress of dust and airborne particles from the outside. This ensures a protective isolation environment for occupants and reduces the risk of infection.
Fully Transparent curtain. The canopy is enclosed with a colorless, odorless, and fully transparent flexible curtain, featuring four access ports for easy entry and exit. It also allows for 360-degree unobstructed visibility of the occupant inside.
Movable Design. Equipped with extra-large silent casters, the canopy can be easily moved and repositioned as needed. Once the casters are locked, the canopy remains firmly and stably in place.
Smarter Operation. The system features touchscreen interaction, real-time monitoring of internal temperature, humidity, and air cleanliness (airborne particle levels). The lighting intensity and color temperature inside the canopy can be adjusted according to user preferences.
Fast Performance. The canopy can achieve and maintain Class 100 (100-level / ISO 5) laminar airflow cleanliness within just 5 minutes.
