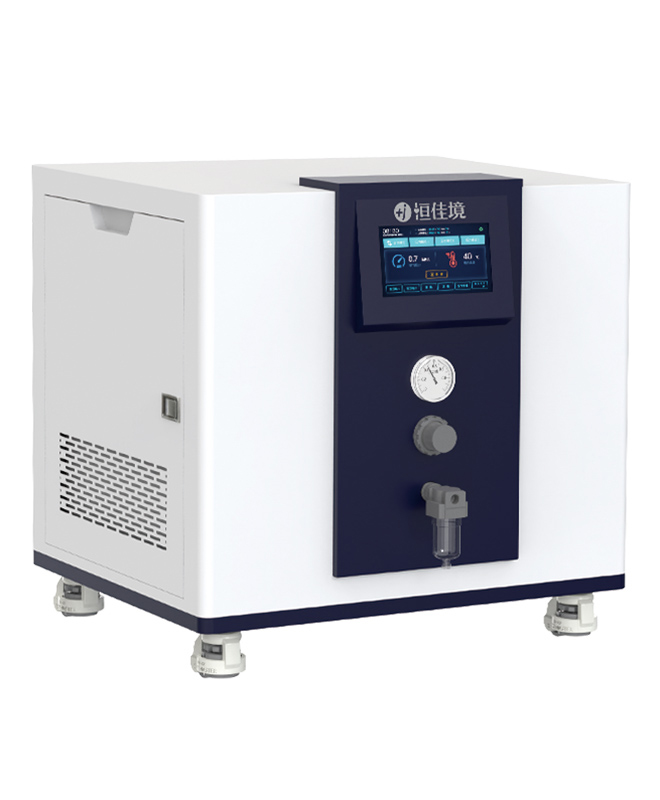

Medical Air Compressor

The medical air compressor is to generate high-pressure air, and perform drying, purification, and storage processes on the compressed air. The final output air meets the requirements for medical compressed air.

How it works?

The HCR-QY300 clean gas supply is equipped with two oil-free air compressors to generate high-pressure air. After the high-pressure air is produced, it first passes through an air condensation system for condensation and water removal. Following dewatering, the air enters a primary filtration stage for purification, during which the condensed water is collected and drained.

The air, after primary filtration, proceeds to a drying system where it undergoes drying and purification treatment to meet air dryness requirements. The dried gas is then stored in a high-pressure air storage tank.

Between the high-pressure storage tank and the final gas usage endpoint, a second stage and third stage filtration are designed to ensure the purity and dryness of the gas delivered to the user.

Additionally, the main unit is equipped with: An air compressor intake filter (to prevent external contaminants from entering), UV sterilization module, and negative ion sterilization module,all of which work together to maintain air cleanliness.

Features

1. 3 stages air purification system: 1st stage @ 3μm, 2nd stage @ 1μm, 3rd stage @ 0.01μm

2. Moisture removal system. Moisture condensation and heat drying to remove airborne moisture.

3. Oil, dust free.

4. Pressure sensor continuously monitors stored air pressure.

5. Processed air compliant with ISO8573

6. Manual and automatic modes

7. 7" touch screen

8. Built-in output pressure regulator with pressure gauge, providing real-time display of the output pressure.

Jiajing Medical Air Compressor Specifications

Noise: 60dB

Maximum Pressure: 0.8MPa

Airborne Moisture: ≤50mg/Nm³

Power Supply: 220V 50Hz
