Medical Pouch Sealer

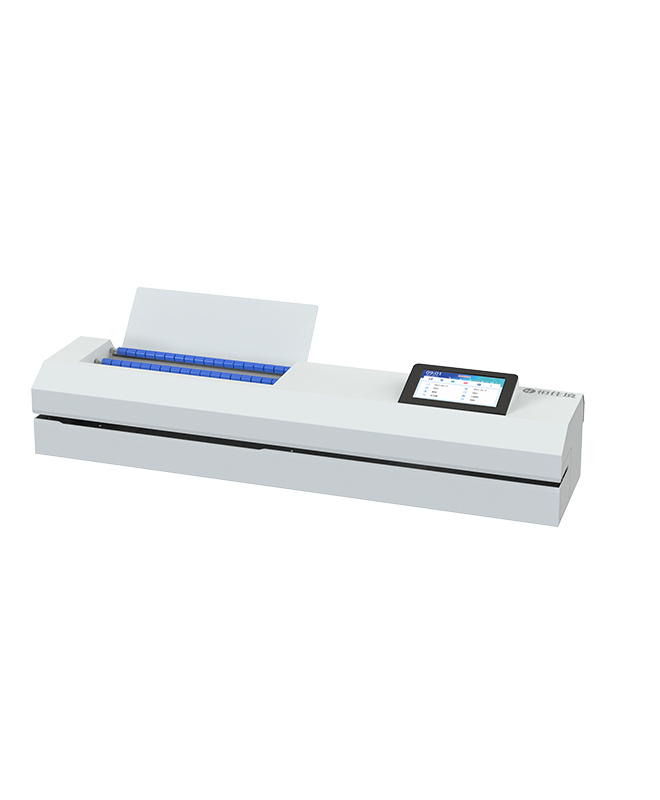

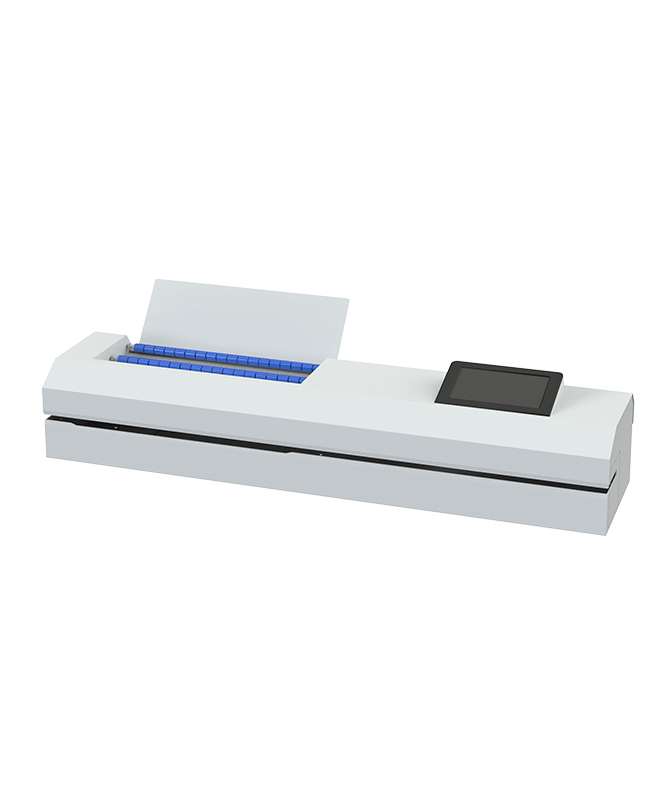

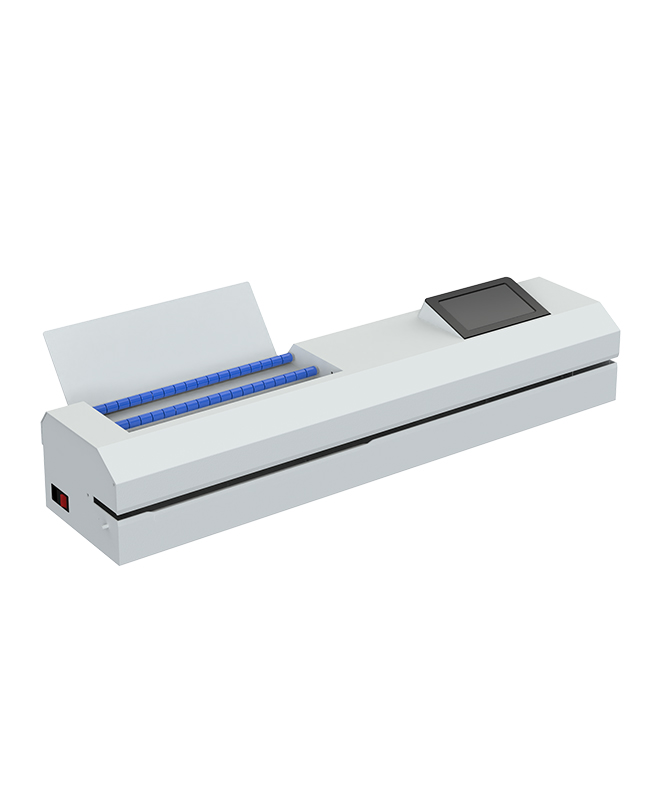

HCRseal-100 Fully Automatic Cut, Seal and Print Machine

Fully automatic cut, seal and printing content

Contact Us
Download PDF
Set A Consultation Today
Name can't be empty
Email error!
Message can't be empty
Send

*We respect your confidentiality and all information are protected.

General Details

Specification

Related Products

Reviews

Description

Automatic reel feeding, cutting and printing content, all functions are integrated in one machine. Operator could set quantity and length of pouches to be cut. Multiple reels can be placed on the holder to improve efficency. Also you can only use its sealing function separately.

Features

  • 7-inch touch panel to control how the pouches are produces and sealed.
  • Real-time monitoring of working condition, pressure, pouch width prompt and fault alarm.
  • Printing module pop-up from side, facilitating replacement of printing cartridge.
  • Sealing records can be exported via USB port.
  • Double-line 24-pin dot matrix printer makes the printing clear, and easy to read.
  • 8 items of content, like manufacturing date, expiry date, operator etc. can be selected to print on the pouch. Items can also be disabled if you do not want them to be printed.

HCRseal-100 Fully Automatic Cut, Seal and Print Machine Specifications

Items Description
Size 1020*232*188 mm
Sealing speed 10 m/min
Margin 0 – 35mm
Sealing temp. Ambient temp. – 220 °C
Heating rate 180 °C/40s
Seal width 12 mm
Reel maximum width 400 mm
Cutting speed 18±0.5 m/min
Printing Double-line
Control panel 7-inch
Rated power 500W
