Endoscope Cleaning Solution

Flexible Endoscope Leak Tester / Detector

The HCR-CL350P/352P leak testers are fully automatic, specialized device designed for leak detection in flexible endoscopes from Olympus, Pentax, Fujifilm etc. High-precision pressure sensor is utilize to detect pressure change during both dry and wet leak test.

Contact Us
Download PDF
Set A Consultation Today
Name can't be empty
Email error!
Message can't be empty
Send

*We respect your confidentiality and all information are protected.

General Details

Specification

Related Products

Reviews

Features

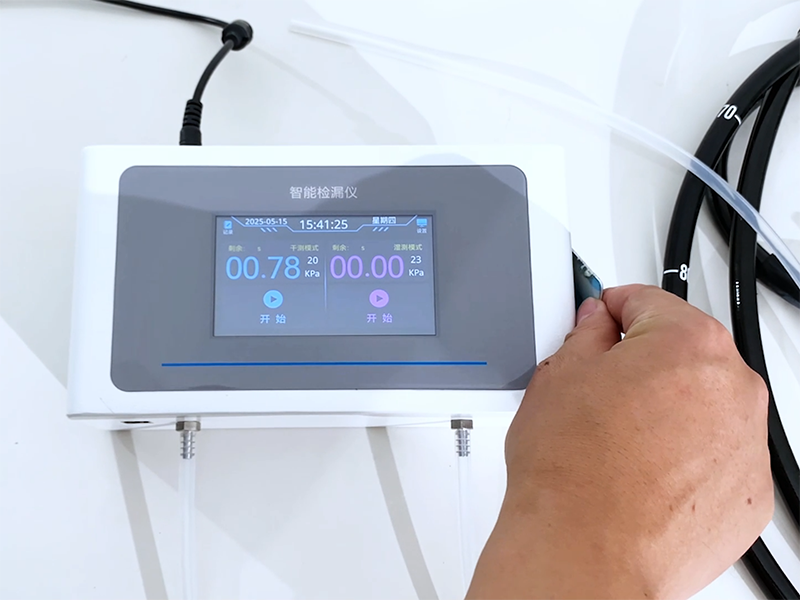

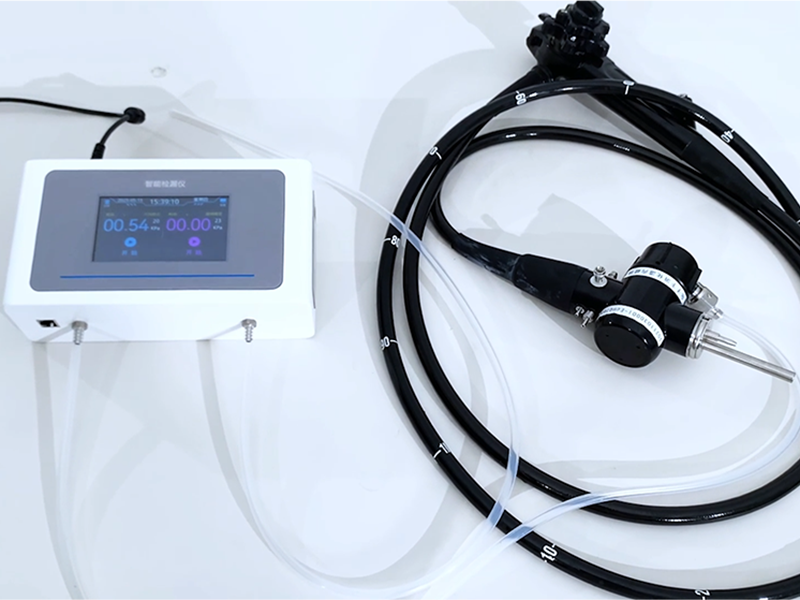

  • One Device, Two Scopes: The leak tester can independently test two endoscopes simultaneously, ensuring convenience and efficiency.
  • Dual Testing Modes: Supports both wet testing and dry testing modes, suitable for various operating conditions.
  • Dual Traceability Modes: Supports internal standalone traceability and external software integration traceability. It can record information such as operator ID, endoscope ID, test date, and test results, which can be queried and exported.

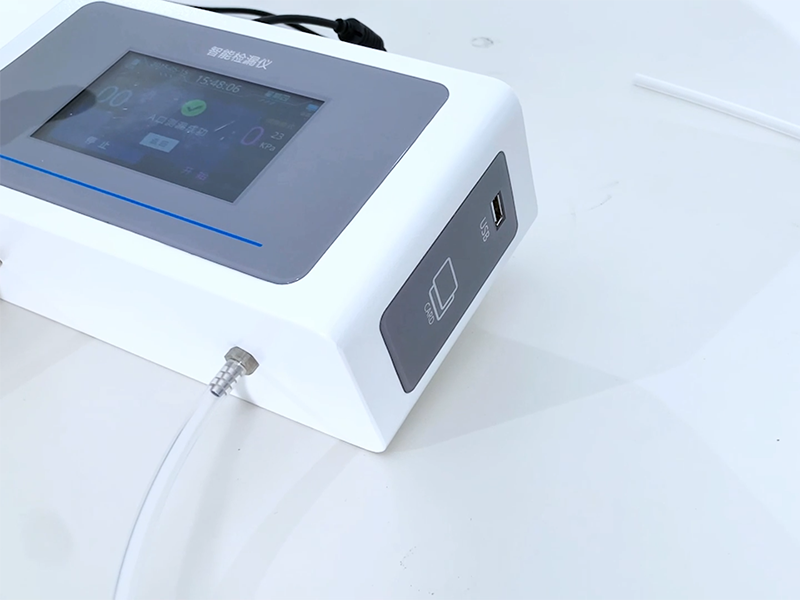

  • RFID Card Input : Allows input of staff ID and endoscope name/ID via RFID card swiping.
  • USB Data Export: All traceability record information can be uploaded to a traceability system and also exported via USB interface.
  • The leak tester automatically determines the leak test result when conduct dry test, with high accuracy and precision. The test time is less than 60 seconds, enabling one-scope-one-test in clinical settings. This effectively reduces infection control risks and helps save maintenance costs
  • The test pressure is adjustable. The device features a 4.3-inch high-definition touch screen with full Chinese display, offering simple and intuitive operation
  • Compact in size, significantly saving installation space. It can be wall-mounted or placed on a tabletop

Jiajing HCR-CL Automatic Leak Tester Specifications

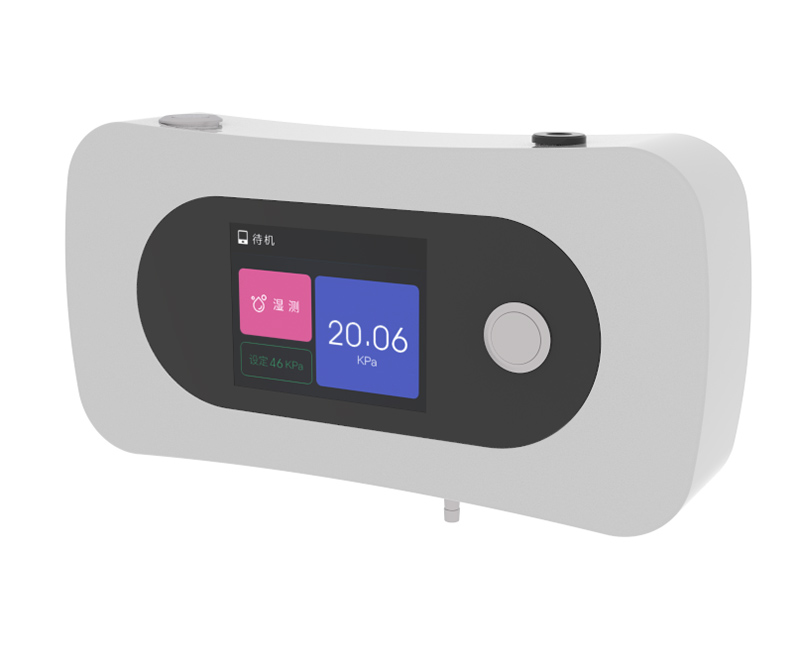

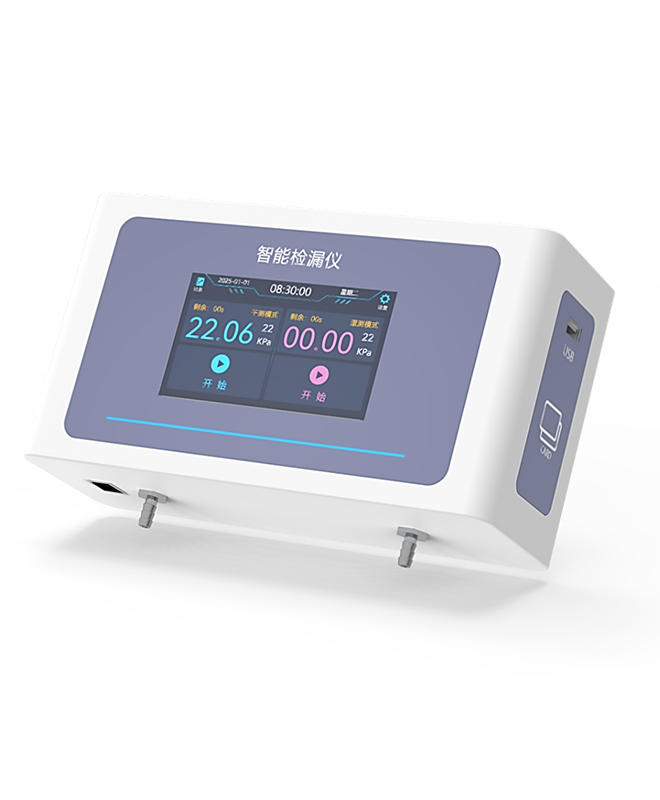

Model HCR-CL350P HCR-CL352P
Power DC 24V / 30W
Size 193*98*41mm 220*120*75mm
Pressure Scope <35 kPa <35 kPa
Display 2.8" 4.3"
Testing Capacity at Same Time 1 scopes 2 scopes
