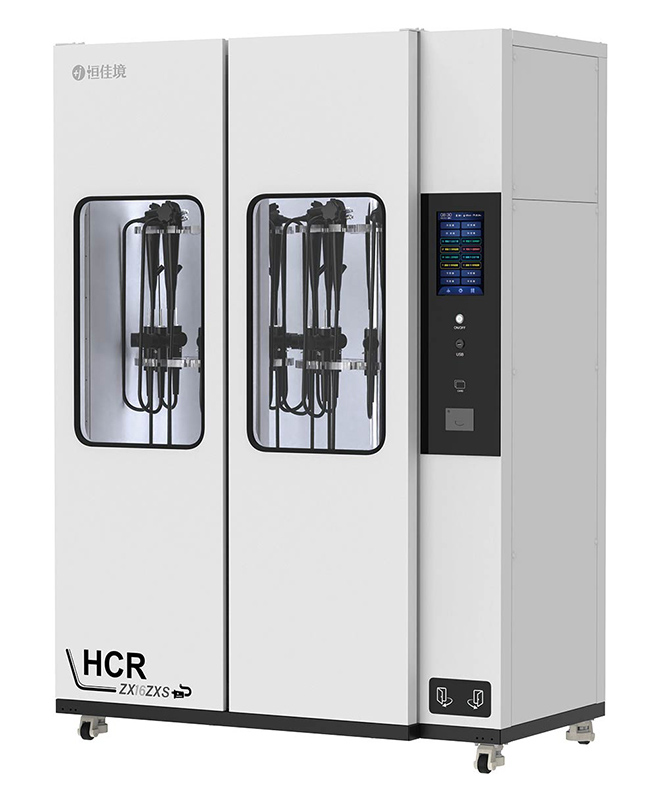

Flexible Endoscope Drying Storage Cabinet (Vertcial Storage)

Features

• H14 HEPA filtration removes 99.99% of particulate at 0.3μm, maintaining chamber air cleanliness at ISO5.
• Air heating. Air intake into the chamber is heated to enhance evaporation of water on the scope surface and in the channel.
• Dehumidification system. Airborne moisture is circulated through the dehumidification system to be removed. Humidity can be set and controlled by user.
• Endoscope channel vacuum drying. Endoscope channels are maintained at negative pressure to enhance water evaporation at low temperature.
• High airflow ensures internal air changes per hour >100. These measures enables thorough drying of endoscope narrow channels and external surfaces.
• Intelligent pressure control system ensures the cabinet maintains positive pressure (>=20Pa) during storage, which will effectively prevents the cross infection from ambient environment.
• 10-inch touch screen clearly displays detailed status of each endoscope. Operation on each scope can be precisely controlled with it.
• Traceability system. Profiles of Endoscope and User can be created and exported. Storage history and status of each Endoscope can be recorded.
• Built-in UVC and plasma disinfection module effectively inactivate the microoranisms.
• Real-time continuous monitoring status, and alarms when door opens for too long time , or when abnormal temperature, pressure and other parameters emerge.
• External program update port and Ethernet port for program update and connecting to traceability system. Card reader supports four frequency bands (IC, ID, NFC, and UHF), offering enhanced compatibility.
• Compatible with all brands of endoscopes.
• Vertical hanging storage is the most endoscope manufacturer recommended storage.

Jiajing HCR-ZX Endoscope Drying Storage Cabinet Specifications
