Flexible endoscope storage cabinet is an essential equipment in the storage of reprocessed endoscopes. By creating a clean, dry environment, microbial growth can be effectively prohibited, avoiding cross-infection consequently.
*We respect your confidentiality and all information are protected.
1. 7-inch touch panel, easy to operate;
2. Door sealed with rubber strips creates airtight storage, isolating the endoscopes from external;
3. Vertical / horizontal storage, 3-4 layers of brackets from top to bottom to protect the endoscope from touching the chamber wall;
4. LED bulb is wired to door. The bulb will illuminate when the door is open, facilitating taking and placing the endoscope;
5. Ultraviolet disinfection and air circulation is available. Disinfection duration can be set to save energy and improve efficiency;
6. Multiple disinfection modes (manual, automatic, reservation, daily) to meet various disinfection needs.
7. Optional purification function.

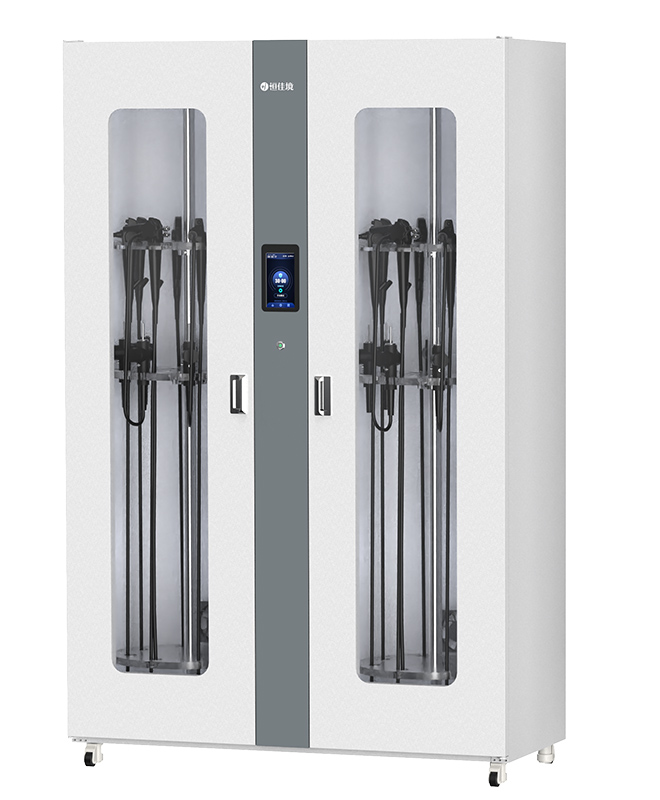

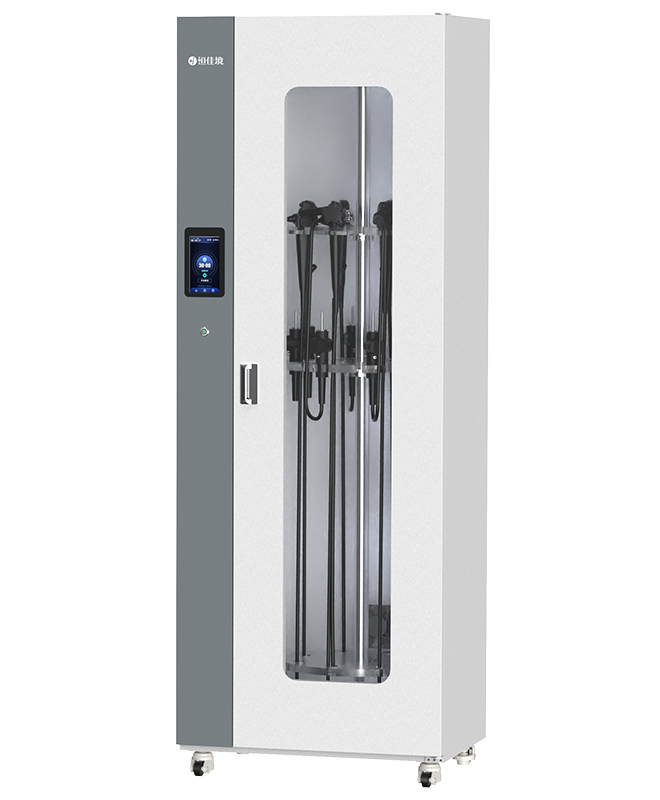

HCR-DX vertical fixed hanging storage cabinet

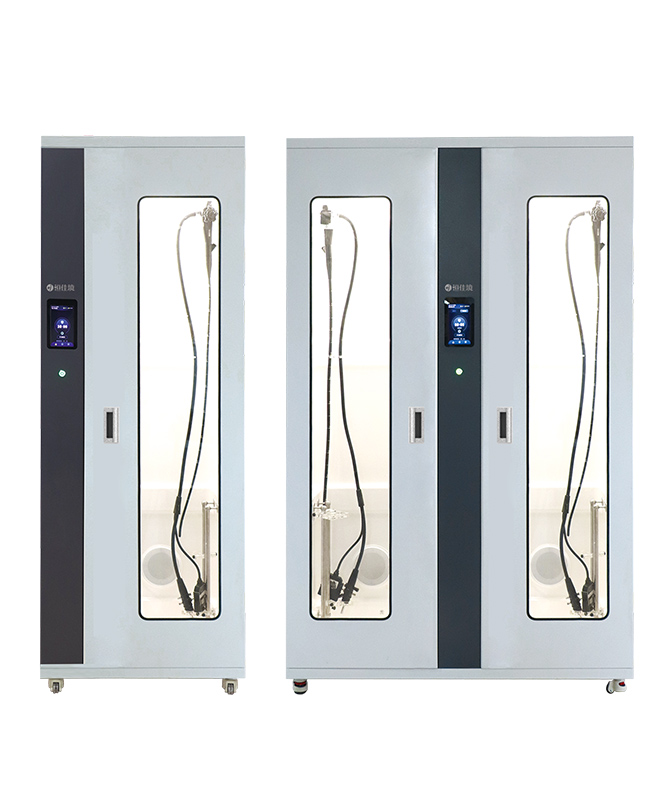

HCR-SX vertical rotary hanging storage cabinet

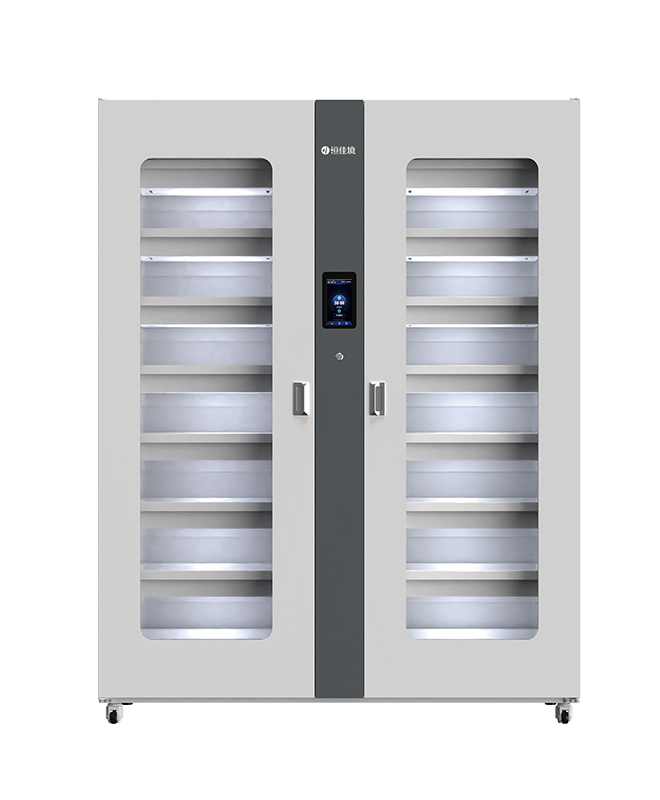

HCR-DP horizontal storage cabinet
| Model | Dimension/mm | Weight/kg | Capacity | Door | Power Supply |
| HCR-DX04 | 740*545*2070 | 80 | 4 | Electric door / Single | 220V 50Hz / 110V 60Hz |
| HCR-DX06 | 880*630*2080 | 100 | 6 | ||
| HCR-DX08S | 1320*545*2070 | 135 | 8 | Electric door / Double | |
| HCR-DX12S | 1600*630*2080 | 155 | 12 |
| Model | Dimension/mm | Weight/kg | Capacity | Door | Power Supply |
| HCR-SX04 | 740*545*2070 | 80 | 4 | Manual door / Single | 220V 50Hz / 110V 60Hz |
| HCR-SX08 | 880*630*2080 | 100 | 8 | ||
| HCR-SX08S | 1320*545*2070 | 135 | 8 | Manual door / Double | |
| HCR-SX12S | 1600*630*2080 | 155 | 12 |
| Model | Dimension/mm | Weight/kg | Capacity | Door | Power Supply |
| HCR-DP08 | 880*630*2080 | 100 | 8 | Electric door / Single | 220V 50Hz / 110V 60Hz |
| HCR-DP16S | 1600*630*2080 | 155 | 16 | Electric door / Double |
