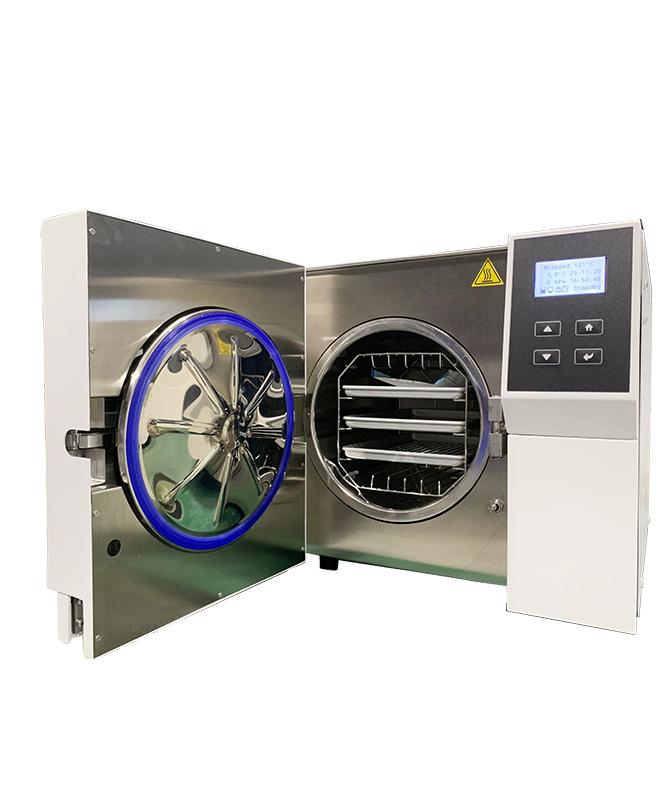

JST-D series autoclaves belong to Class B benchtop steam sterilizer. They take steam as sterilization media which is fast, safe and economic. Class B autoclaves are commonly used in dental department, ophthalmological department, operating room and CSSD to sterilize wraped or unwrapped instruments, like fabric, utensils, culture medium, unsealed liquid, etc. The design of chamber is compliant with state GB1502011, GB8599-2008, CE and EN285 standard.
*We respect your confidentiality and all information are protected.
| Design temperature | 144 °C |
| Design pressure | 0.30MPa |
| Working pressure | 0.24MPa |
| Maximum vacuum | -0.08MPa (21kPa) |
| Temperature | 121°C, 134°C |
| Temperature accuracy | 0.1°C |
| Pressure display accuracy | 1kPa |
| Relief valve's maximum operating pressure | 0.28MPa |
| Purified water container | 2.5L, 3L |
| Power supply | 220V 50Hz, 110V 60Hz |
| Model | Volume | Class type | Chamber dimension (φ*L)/mm | Overal dimension (L*W*H)/mm | Input power/kVA | Net weight |
| JST-D | 8L | Class B | 170*320 | 580*420*385 | 3.0 | 40 kg |
| JST-D | 12L | Class B | 200*360 | 580*420*385 | 3.0 | 44 kg |
| JST-D | 18L | Class B | 247*350 | 590*485*455 | 3.0 | 50 kg |
| JST-D | 23L | Class B | 247*450 | 690*485*455 | 3.0 | 54 kg |
